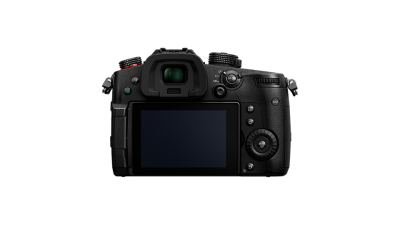

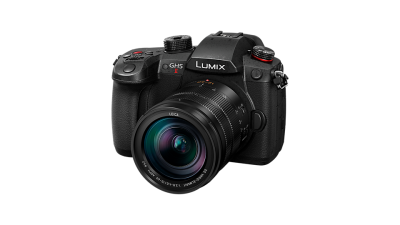

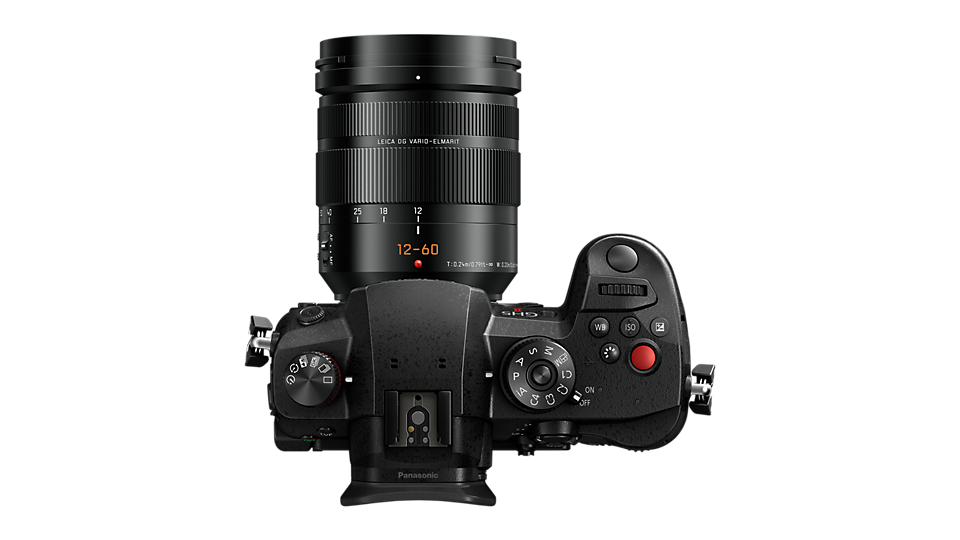

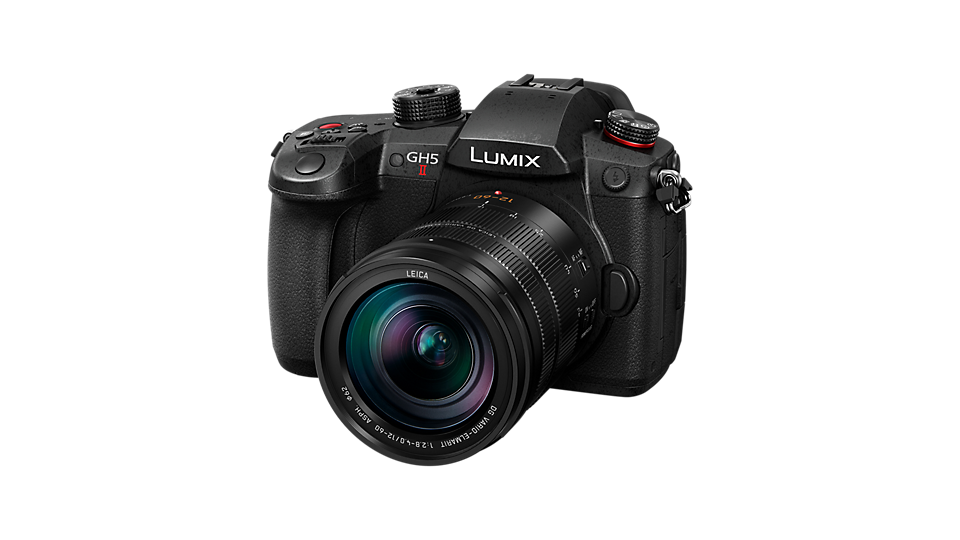

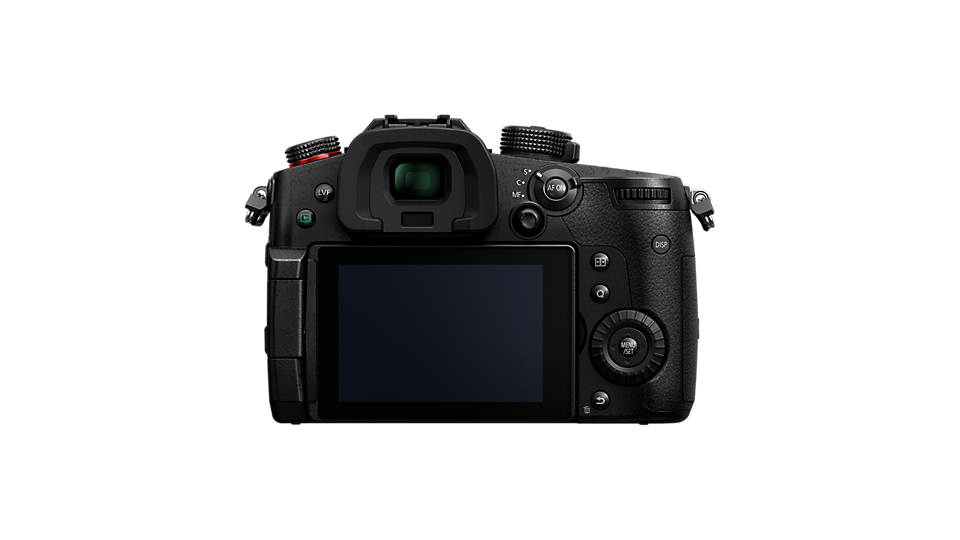

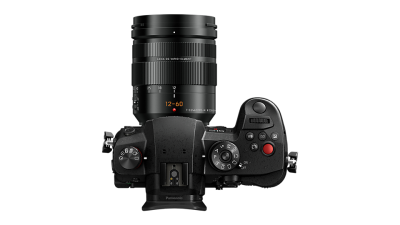

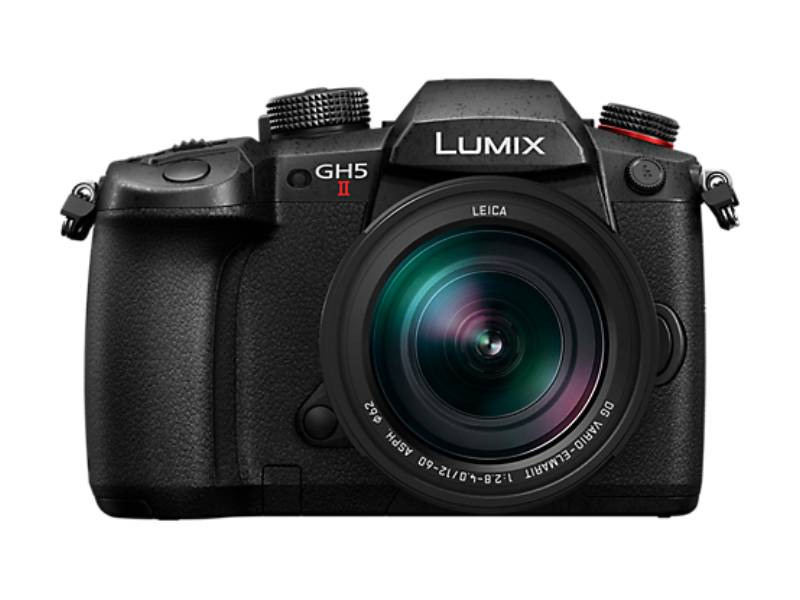

Panasonic Digital Single Lens Mirrorless Camera - DCGH5M2LK
$2,999.99 CAD
Literature
You may also like
Free Your Creativity. Go Live.
Hybrid mirrorless camera featuring live streaming capability and C4K 60p/50p 10-bit video recording.
Features
An ideal video creation tool
From streaming and delivery-ready shooting to uncompressed log recording suitable for advanced post-production. A hybrid mirrorless camera that meets the needs of all creators.
C4K/4K 60p/50p 10-bit internal/external recording
Simultaneous C4K/4K 60p/50p 4:2:0 10-bit internal recording and C4K/4K 60p/50p 4:2:2 10-bit HDMI live output external recording are supported.
- HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
The LUMIX GH5M2 offers the multiple recording modes utilized for cinema, broadcasting, and other professional applications. In addition to C4K/4K 60p/50p 4:2:0 10-bit and C4K/4K 30p/25p/24p 4:2:2 10-bit ALL-Intra 400Mbps recording, unlimited recording is offered on all settings.* *On condition that the camera is under the environment where the operation is guaranteed and is running on the battery. Recording time depends on the capacity of the battery and the SD Memory Card. Recording may stop in C4K/4K 60p/50p 10-bit and Anamorphic mode automatically to protect the camera.
Pre-installed V-Log L
The LUMIX GH5M2 features a dynamic range of 12 stops with pre-installed V-Log L, while color graders can utilize the same LUTs they use with V-Log. V-Log/V-Gamut and LUTs https://pro-av.panasonic.net/en/cinema_camera_varicam_eva/support/lut/index.html
USB power supply / power charging
Convenient during long shoots in the studio and elsewhere, this feature allows you to supply power to the camera. When used in combination with the separately sold battery charger DMW-BTC15 (USB Power Delivery standard compliant), it can be charged while supplying power.* * Battery must be installed in camera and retain some charge for feature to work.
Wireless live streaming (RTMP/RTMPS protocol)
Enjoy wireless livestreaming indoors and outdoors with the ease-of-operation afforded by the LUMIX Sync app (Android/iOS). Stream live events anytime, anywhere with the quality that only a digital single lens mirrorless camera can offer. ･Live streaming to the platforms that comply with RTMP/RTMPS is basically possible (Compatibility with all the platforms is not guaranteed.) There may be the cases where the live streaming is not possible when the service of the platform changes. For more information, please refer to the terms and conditions of the platform.･Android and Google Play are trademarks or registered trademarks of Google Inc.･IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
Enhanced 20.3MP MOS sensor with AR coating
An AR (Anti Reflection) coating effectively suppresses flare to capture the expression of light as it is, even in a harsh shooting environment surrounded by strong light such as backlight, achieving high-quality visual beauty for both videos and still images.
Autofocus featuring AI technology
Features high-speed, high-precision AF, and deep learning technology for recognition of human faces, eyes, heads, and bodies, as well as animals.
6.5-stop Dual I.S. 2 (Image Stabilizer)
5-axis Dual I.S. 2 (Image Stabilizer) combines control of the Body I.S. and Lens O.I.S. to offer 6.5 stops’ worth of correction.* *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.
Supports a wide range of production needs
With video performance suited to a wide range of creative needs, plus flexible, high-quality fundamental performance, the LUMIX GH5M2 offers professional-level video recording and still image shooting.
| Note | |
|---|---|
| Note | (*¹) About motion picture recording- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV]. (SD speed class is the speed standard regarding continuous writing.)- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.- MP4 motion pictures with [MP4] in [4K]: - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately. - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.- MP4 motion pictures with [MP4] in [FHD]: - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC. The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player. It may cause problems such as freezing when played on these devices.- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.(*²) For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".(*³) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees. |
| Standard accessories | |
| Standard accessories | DC-GH5M2 KitBody Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable HolderDC-GH5M2L Kit / DC-GH5M2M KitBody Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, Lens Cap, Lens Hood, Lens Rear Cap・ The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet. |
| Software | LUMIX Sync・ This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)LUMIX Network Setting Software・ This software is used to write in streaming destination setting information into an SD card from a computer. Check the site below to download and install the software.https://panasonic.jp/support/global/cs/dsc/ (For Windows / Mac)LUMIX Tether・ This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac) |
| OPERATING ENVIRONMENT | |
| Operating humidity | 10%RH to 80％RH |
| Operating temperature (*³) | -10oC to 40oC (14oF to 104oF) |
| Dimensions / Weight | |
| Weight | Approx. 727g / 1.60 lb (SD Memory Card x 1, Battery, Body)Approx. 647g / 1.43 lb (Body only) |
| POWER | |
| Battery grip | DMW-BGGH5 (sold separately) |
| Dimensions / Weight | |
| Dimensions (W x H x D) | Approx. 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions) |
| POWER | |
| Actual recordable time (Motion picture) (*¹) | MP4 [4K/60p]: Approx. 60 min with H-ES12060 / H-FS12060MP4 [FHD/60p]: Approx. 70 min with H-ES12060 / H-FS12060 |
| Battery life (CIPA standard) | Approx. 400 images, 1200 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22Approx. 410 images, 1200 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. |
| Continuous recordable time (Motion picture) (*¹) | MP4 [4K/60p]: Approx. 120 min with H-ES12060 / H-FS12060MP4 [FHD/60p]: Approx. 140 min with H-ES12060 / H-FS12060 |
| DUST AND SPLASH RESISTANT* | |
| DUST AND SPLASH RESISTANT* | Yes.*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. |
| POWER | |
| Battery | Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)USB power supply, USB power charging, USB power delivery |
| WIRELESS | |
| Wi-Fi | 2.4GHz (STA/AP) (IEEE802.11b/g/n)5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries. |
| Bluetooth | Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) |
| Interface | |

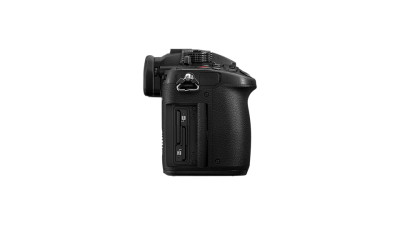

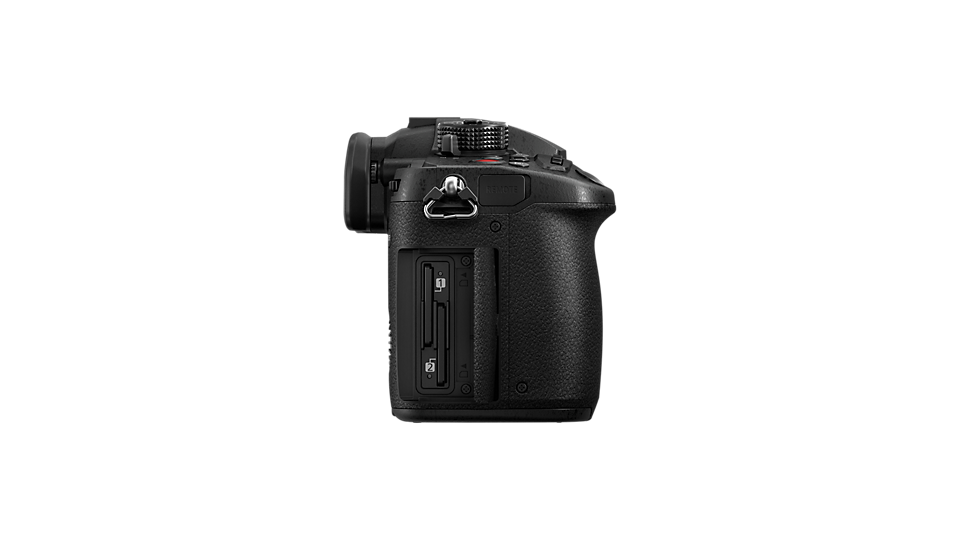

| SD card slot | Slot 1, Slot 2 |
| Speaker | Monaural |
| Headphone output | φ3.5mm |
| XLR microphone | Yes with DMW-XLR1 (sold separately) |
| External microphone / external audio device input | φ3.5mm for external microphone / external audio deviceMIC (Plug-in Power) / MIC / LINE is selectable.Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately). |
| Microphone | Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately). |
| Remote input | φ2.5mm |
| HDMI (*²) | HDMI TypeAAudio: Stereo |
| USB | SuperSpeed USB 3.1 Gen1 Type-C |
| PictBridge compatible | |
| FUNCTION BUTTON | |
| PLAY | Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default |
| LEVEL GAUGE | |
| LEVEL GAUGE | Yes |
| FUNCTION BUTTON | |
| REC | Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Motion Pic. Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / Off (Disable Press and Hold) / Restore to Default |
| VERTICAL POSITION INFORMATION | |
| VERTICAL POSITION INFORMATION | Still image / Motion picture (ON/OFF) |
| MOTION PICTURE FUNCTION | |
| Other functions | Red REC Frame Indicator, Streaming Blue Frame Indicator, |
| Knee control | Yes (in Like709 mode) |
| SS/Gain operation | Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB |
| Color bars / 1kHz test tone | Yes (SMPTE / EBU / ARIB) / Yes |
| Time code | Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.) |
| Synchro scan | Yes |
| Anamorphic desqueeze display | 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF |
| HLG view assist | Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) |
| LUT view assist | Monitor / HDMI |
| Wave form monitor / Vectorscope | Selectable |
| Luminance level | 8-bit: 0-255 / 16-235 / 16-25510-bit: 0‒1023 / 64‒940 / 64‒1023 |
| Master pedestal level | 31 steps |
| FILTER | |
| FILTER | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine**For photos only. |
| PHOTO STYLE | |
| Picture adjustment | Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB*Adjustable settings vary depending on the Photo Style mode. |
| Photo Style | Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10 |
| EXTRA TELE CONVERSION | |
| EXTRA TELE CONVERSION | 2.0x (EX S), 1.4x (EX M) *Only for still image recording. |
| Flash | |
| Flash sync socket | Yes |
| Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
| Synchronization speed | Less than 1/250 second |
| Flash output adjustment | 1/3EV step ±3EV |
| Flash synchronization | 1st Curtain Sync, 2nd Curtain Sync. |
| TIME LAPSE SHOT | |
| TIME LAPSE SHOT | Yes |
| STOP MOTION ANIMATION | |
| STOP MOTION ANIMATION | Yes |
| Flash | |
| Flash type | TTL External Flash (sold separately) |
| Flash mode | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. |
| 6K PHOTO (*¹) / 4K PHOTO (*¹) | |
| Burst speed | 6K PHOTO: 30 frames/sec4K PHOTO: 60 frames/sec, 30 frames/sec |
| Exif information | Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.) |
| BURST SHOOTING | |
| Number of recordable images | RAW / RAW+JPEG: More than 108 imagesJPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.)*When recording is performed under the test conditions specified by Panasonic. |
| Burst speed | AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)AFC: H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
| BRACKET | |
| White balance bracket | 3 images in blue/amber axis or in magenta/green axis, color temperature setting |
| Focus bracket | 1 to 999 images, focus steps can be set in 10 levels |
| Aperture bracket | 3, 5 or all positions |
| AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
| Shutter | |
| Silent mode / Shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) |
| Exposure Control | |
| Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
| AE lock | Set the Fn button in custom menu to AE lock |
| Image Stabilization System | |
| IMAGE STABILIZATION SYSTEM | Image sensor shift type (5-axis / 6.5-stop*)*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.Dual I.S. (6.5-stop* Dual I.S. 2 compatible)*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used. |
| White Balance | |
| White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 |
| White balance adjustment | Blue/Amber bias, Magenta/Green bias |
| Color temperature setting | 2500-10000K in 100K |
| Shutter | |
| Type | Focal-plane shutter |
| Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60Motion picture: 1/16,000 - 1/25Creative Video M mode / MF mode: 1/16,000 - 1/2 |
| Self timer | 10sec, 3 images / 2sec / 10sec / Custom Time |
| Remote control | Remote control by DMW-RS2 (sold separately) |
| Exposure Control | |
| Light metering mode | Multiple / Center Weighted / Spot / Highlight Weighted |
| Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) |
| Recording mode | Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Auto |
| ISO sensitivity (Standard output sensitivity) | Still image: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step) |
| Light metering system | 1,728-zone multi-pattern sensing system |
| Focus | |
| Others | Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume |
| Focus Ring Control | Nonlinear / Linear *When a compatible lens is attached. |
| Post Focus / Focus Stacking | Yes / Yes |
| AF assist light | Yes |
| AF lock | Set the Fn button in custom menu to AF lock |
| AF detective range | EV -4 - 18 (F2.0, ISO100 equivalent, AFS) |
| AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction |
| Type | Contrast AF system |
| DFD technology | Yes |
| Focus mode | AFS (Single) / AFC (Continuous) / MF |
| AF mode | Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3(Full area touch is available) (Scalable AF frame size and flexible AF position) |
| Rear monitor | |
| Pixels | Approx. 1.84 million dots |
| Field of view | Approx. 100% |
| Type | TFT LCD monitor with static touch control |

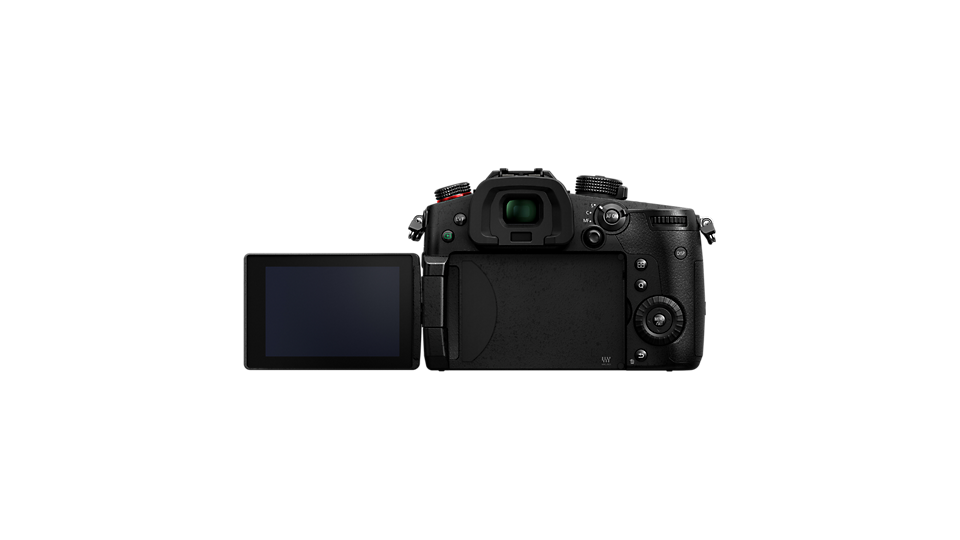

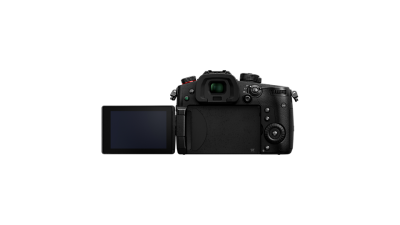

| Monitor size | Free-angle, 3.0-inch (7.5cm), 3:2 aspect |
| Viewfinder | |
| Display speed | 120fps / 60fps |
| Eye sensor | Yes |
| Eye point / Diopter adjustment | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt) |
| Field of view / Magnification | Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3 |
| VARIABLE FRAME RATE | |
| MOV (*¹) High-res audio is selectable only when using the DMW-XLR1 (sold separately). | 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) |
| STREAMING | |
| Protocol | RTMP / RTMPS |
| Streaming quality | 59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.29.97p, 6Mbps / 3Mbps (H.264) |
| Viewfinder | |
| Type | OLED Live View Finder |
| Pixels | Approx. 3.68 million dots |
| MOTION PICTURE | |
| MP4 (*¹) | 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| Type | |
| Type | Digital Single Lens Mirrorless camera |
| Recording media | SD Memory Card / SDHC Memory Card* / SDXC Memory Card**Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. |
| Lens mount | Micro Four Thirds mount |
| Image Sensor | |
| Type | Live MOS sensor (17.3 x 13.0 mm) |
| Camera effective pixels / Total pixels | 20.33 megapixels / 21.77 megapixels |
| AR (Anti Reflection) coating | Yes |
| Aspect ratio / Color filter | 4:3 / Primary color filter |
| Dust reduction system | Image sensor shift type |
| Latitude | |
| LATITUDE | 12 stops (V-Log L) |
| STILL IMAGE | |
| Recording file format | JPEG (DCF, Exif 2.31), RAW |
| Aspect ratio | 4:3 / 3:2 / 16:9 / 1:1 |
| File size (Pixels) | 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) |
| Image quality | RAW / RAW+Fine / RAW+Standard / Fine / Standard |
| Color space | sRGB, AdobeRGB |
| MOTION PICTURE | |
| Recording file format | MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch)) |
| System frequency | 59.94Hz / 50.00Hz / 24.00Hz |
| Image area of video | Full / Pixel by Pixel |
| MOV (*¹) High-res audio is selectable only when using the DMW-XLR1 (sold separately). | 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable. |
