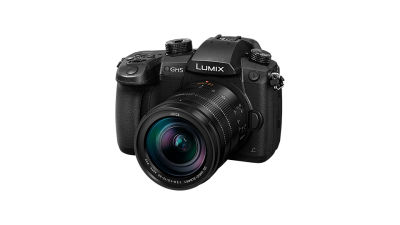

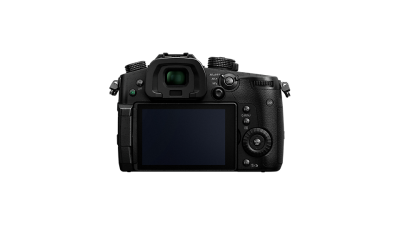

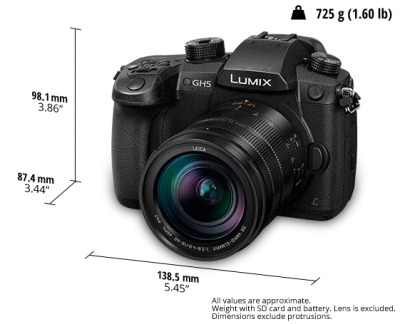

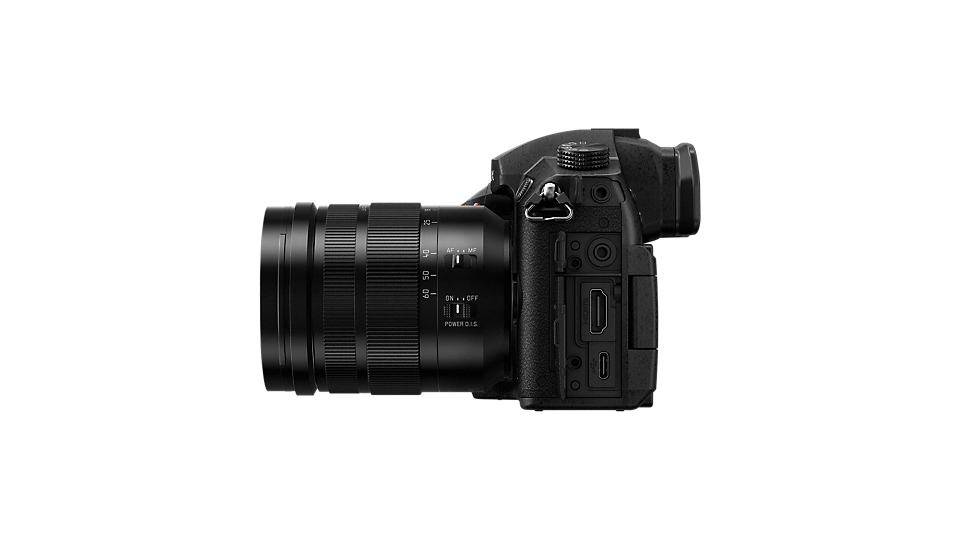

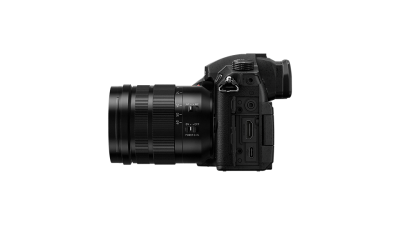

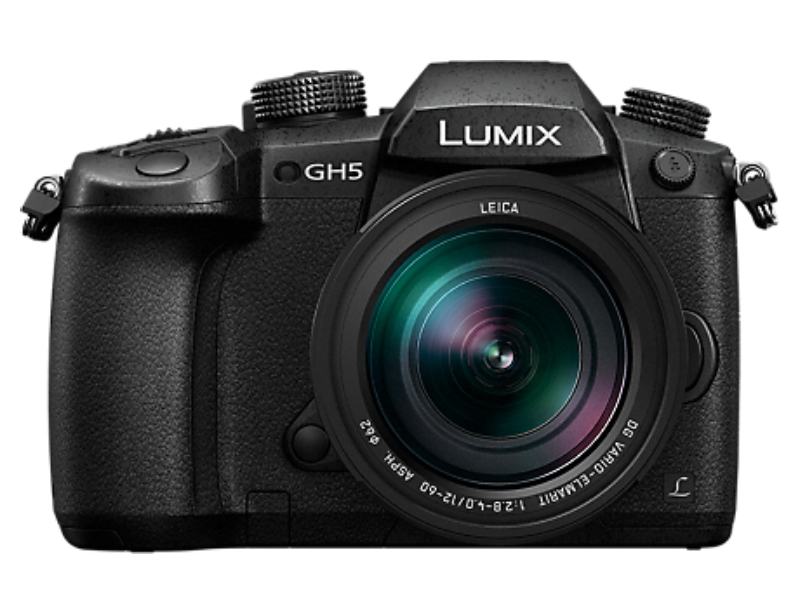

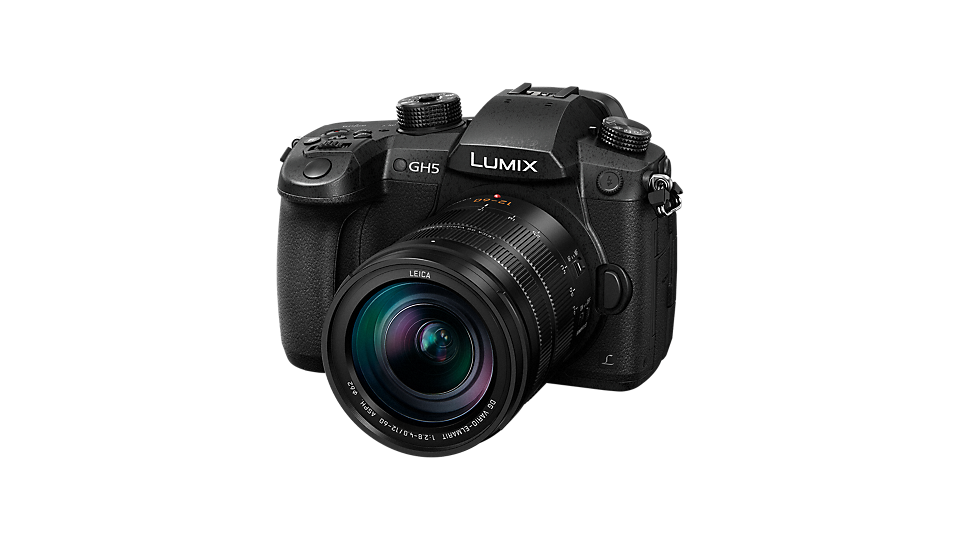

Panasonic Digital Single Lens Mirrorless Camera - DC-GH5LK
You may also like
PHOTOS. VIDEOS. Explore New Frontiers.
The GH5 delivers a high-end, hybrid performance to photo enthusiasts and professional videographers looking to capture moments in 4K 60p* / 50p video and 6K PHOTO. Explore new dimensions of photography and videography with the LUMIX GH5.
The Pursuit of Perfection
LUMIX GH5 is taking image and video quality to the next level, with the world's first 4K/60p recording* and a new 6K Photo function that makes sure you never miss the moment. LUMIX Ambassador Steven Clarey explores new possibilities of photography and videography with the LUMIX GH5, as he captures freesurfer Dion Agius in action in Mozambique. * For a compact system camera and as of 4 January 2017.
20.3MP Pixel-Perfect Shooter
The LUMIX GH5 packs a real punch with its high performance Digital Live MOS sensor sporting a whopping 20.3 megapixels to achieve the ultimate picture quality in the history of LUMIX G digital cameras. Together with the removal of the low-pass filter from the sensor, you can confidently capture the sharpest ever imagery with high dynamic range and artifact free. The LUMIX GH5 is a camera of beauty created by you and crafted by Panasonic engineering.
Venus Engine Beauty
The marriage of an advanced Digital Live MOS sensor with the beautiful new Venus Engine 10 reproduces extraordinary colour detail and natural texture expression. Multipixel Luminance Generation and Intelligent Detail Processing renders intense brightness and contrast. The Three-Dimensional Colour Control with rich colours from dark to bright shades and high-precision Multi Process NR makes your images pop. Video users will be impressed with the improved performance in perceptual dynamic range at high ISO sensitivity settings.

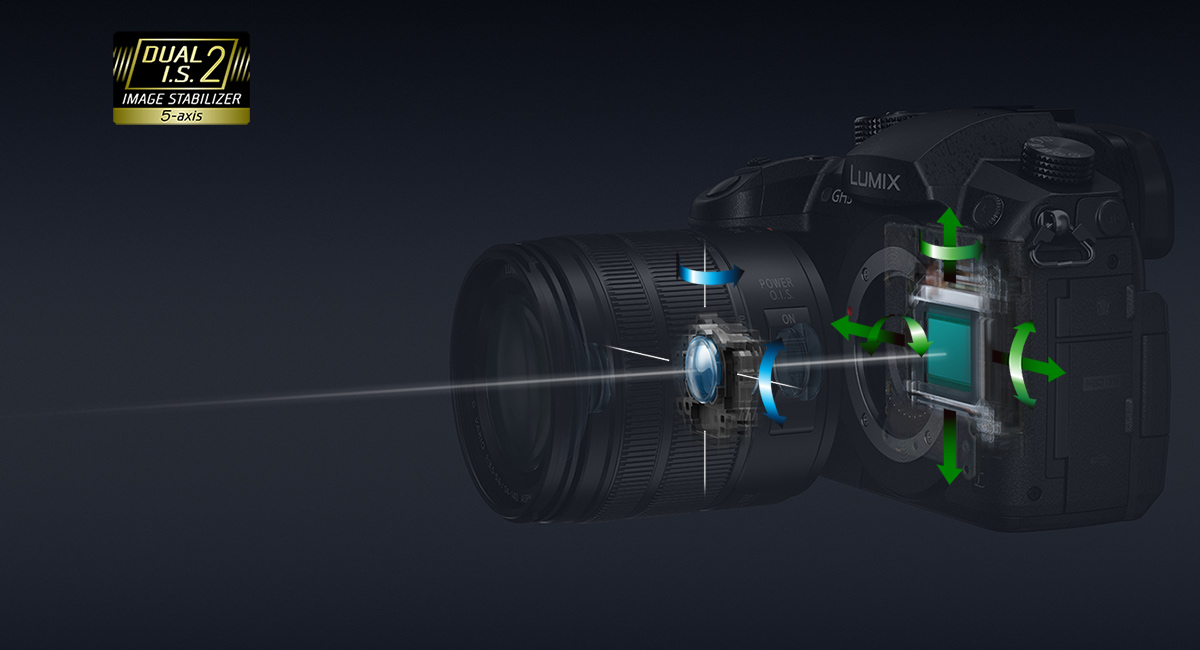

Dual Image Stabilizer 2
Its difficult to handhold a camera at the best of times but don't fret, with the 5-axis Dual I.S. (Image Stabilizer) 2*, intelligent compensation comes to your aid. This is the equivalent to doubling (x5) of exposure duration meaning you can use a 5-stop slower shutter speed up to tele-end. The LUMIX GH5 eliminates shake in both body and lens from wide-angle to tele-end**. It also works in both photo and video recording, including 4K video. The astonishing power of the 5-axis Body I.S. corrects shake for all lenses, including classic lenses not equipped with O.I.S. * 5-axis Dual I.S. 2 works when attaching a lens that are compatible with it. Firmware update of the lens is also required. ** Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50-140 mm (35 mm film camera equivalent f=100-280 mm), when H-FS14140 is used.]

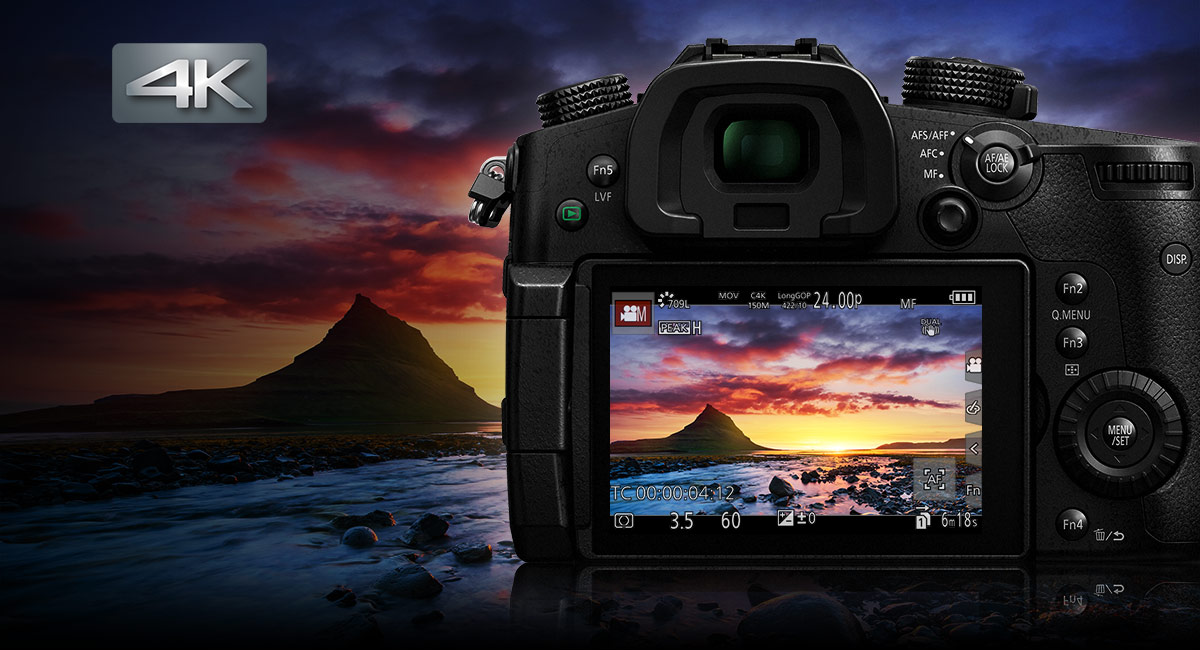

World 1st* 4K 60p/50p Smooth Quality Video
The LUMIX GH5 takes professional shooting performance to another level with high-precision, silky smooth 4K 60p/50p (QFHD 4K: 3840 x 2160 / MOV or MP4) video recording capability. Faster frame rates mean excellent motion compensation plus you can slow down footage inside your video editing timeline without losing detail. You also achieve perfect panning control and a suppression of the rolling shutter effect as seen in lesser frame rates. High-resolution images and perfect focal length can also be achieved as the LUMIX GH5 features pixel for pixel, no sensor cropping recording. There's also no recording duration limit so you can go beyond 30 minutes in all record settings. * For a Digital Single Lens Mirrorless camera as of 4 January, 2017.

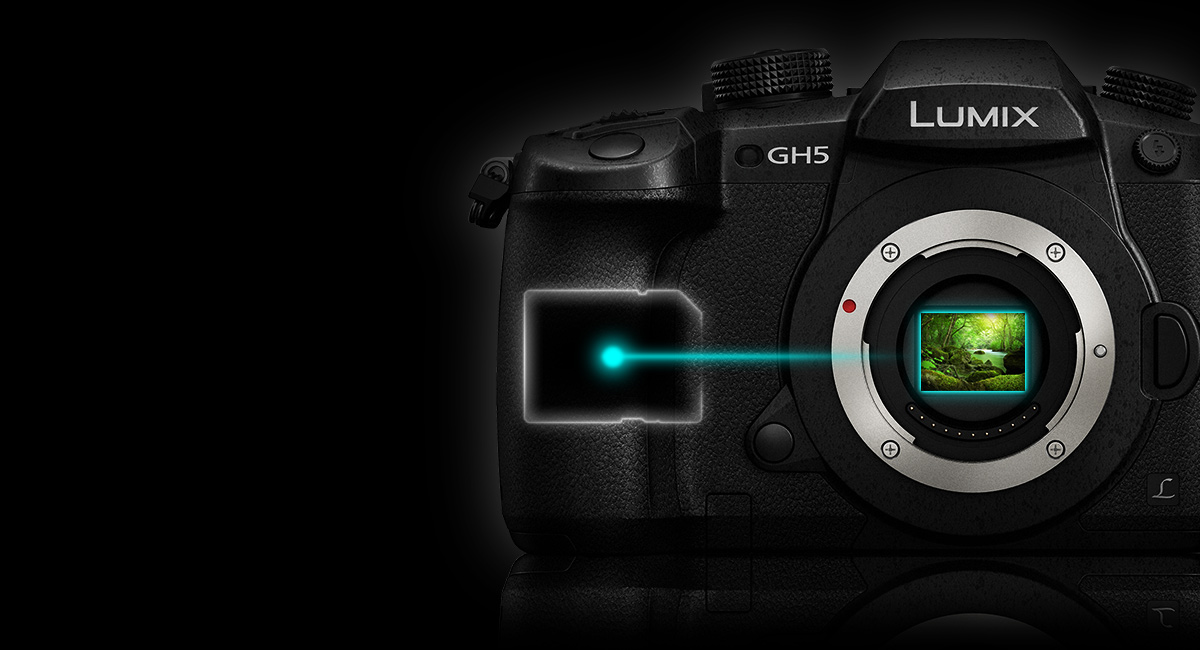

World 1st* 4:2:2 10-bit Internal Recording
The LUMIX GH5 brings game changing internal 4:2:2 10-bit 4K video recording. For example, 10-bit will render all the subtleties of graduated skies and sunsets without the banding so prone to 8-bit. The power of having film creation capabilities inside the camera sets a new precedent in guerilla style film-making. And you can record 4:2:2 10-bit to SD card whilst simultaneously feeding the live signal thru a full-size HDMI port** connected to an external monitor or recorder. 4:2:2 10-bit recording enables faithful colour and grading fidelity with over a billion colours and four times the tonality of 8-bit to match professional intent. A mind-blowing 400 Mbps (ALL-Intra) high bitrate recording mode will be available by firmware update***. * For an interchangeable lens system camera as of 4 January, 2017. ** 4K 4:2:2 10 bit 60p/50p video is output only. *** Available Summer 2017.
Ultra Fast Motion Detection & Focus
Panasonic's innovative DFD (Depth From Defocus) technology is constantly evolving and its just got even better. DFD allows the LUMIX GH5 to calculate focal lens movement by comparing depth of field values of two images at incredibly high speed. By combining the AF drive with a maximum read speed of 480 fps, the LUMIX GH5 can achieve ultra-high-speed Auto Focus in up to 0.05 seconds and 9 fps burst shooting with AFC (* 12 fps burst shooting with AFS). A newly adopted motion detector accurately tracks fast moving subjects, and enables smooth 4K PHOTO/VIDEO & 6K PHOTO recording. * In AFS, at wide-end with H-ES12060 (CIPA).
Never Miss a Shot with 6K / 4K Burst
Shoot with unlimited burst, then choose and extract the exact frames you want to keep. The new 6K PHOTO* mode at 30 fps allows you to capture perfect moments at a stunning 18-Mpx (approx) high-resolution. The Ultra-high-speed 4K PHOTO mode at 60 fps freezes even faster motion which is simply not possible in conventional cameras. The LUMIX GH5 truly does make moments unmissable. * 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx.18-Mpx (approx. 6000 x 3000 effective pixel count)
Rugged Design - Splash / Dust / Freeze resistant
The LUMIX GH5 is built like a tank to withstand even heavy use out in the field. It is freeze resistant down to -10-degrees, in addition, it has a splash / dust resistant construction thanks to weather sealing on every joint, dial, and button. A magnesium alloy full diecast armor frame makes the body lightweight yet durable while bringing ruggedness to the compact size. This camera can go everywhere you can. * Splash Resistant is a term used to describe an extra level of protection this camera offers against exposure to a minimal amount of moisture, water or dust. Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with water.

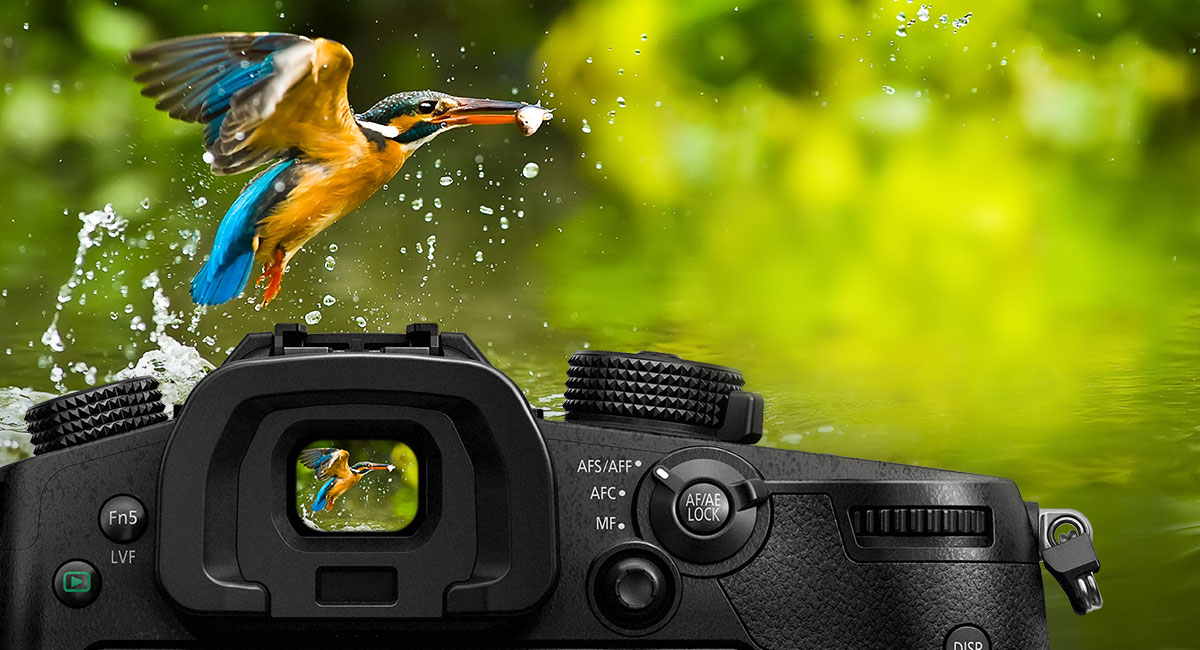

3,680K-dot, Large OLED LVF
A super high-resolution 3,680K-dot OLED LVF (Live View Finder) brings gorgeous visibility and makes for perfect framing even under direct sunlight. A high 0.76x magnification (35 mm camera equivalent) makes it easy-to-see image detail, your settings and icons, and, the long eye point distance of 21 mm is excellent for people who wear spectacles. Best of all, the OLED LVF ensures your pictures match up to exactly how you intended them.
INTERCHANGEABLE LENS-1 | |
---|---|
Dust reduction system - Optical Image Stabilizer | Yes (POWER O.I.S.) |
Dust reduction system - Mount | Micro Four Thirds mount |
Dust reduction system - Nano Surface Coating | Yes |
Dust reduction system - Lens Construction | 14 elements in 12 groups (4 aspherical lenses, 2 ED lenses) |
Dust reduction system - Lens Name | LEICA DG VARIO-ELMARIT 12-60mm / F2.8-4.0 ASPH. / POWER O.I.S. |
Dust reduction system - Weight [oz] | Approx. 11.29 oz (excluding lens cap, lens rear cap and lens hood) |
Dust reduction system - Weight [g] | Approx. 320 g (excluding lens cap, lens rear cap and lens hood) |
Dust reduction system - Overall Length | Approx. 86 mm / 3.39 inch (from the tip of the lens to the base side of the lens mount) |
Dust reduction system - Max. Diameter | φ68.4 mm / 2.69 inch |
Dust reduction system - Filter Size | φ62 mm / 2.44 inch |
Dust reduction system - Weatherproof | Splash/Dust/Freezeproof |
Dust reduction system - Diagonal Angle of View | 84° (Wide) - 20° (Tele) |
Dust reduction system - Maximum magnification | Approx. 0.3x / 0.6x (35mm camera equivalent) |
Dust reduction system - Closest Focusing Distance | 0.20 m / 0.66 ft (at focal length 12 mm) / 0.24 m / 0.79 ft (at focal length 60 mm) |
Dust reduction system - Minimum Aperture | F22 |
Dust reduction system - Maximum Aperture | F2.8 (Wide) - F4.0 (Tele) |
Dust reduction system - Aperture Type | 9 diaphragm blades / Circular aperture diaphragm |
Dust reduction system - Focal Length | f=12-60 mm (35 mm camera equivalent10/01/2017 24-120mm) |
General | |
Dust reduction system - Standard accessories | Battery Charger (AC Cable included), Battery Pack, Body Cap, Hot Shoe Cover, Eye Cup, Flash Syncro Socket Cap, Cover for the Battery Grip Connector, USB Connection Cable, Shoulder Strap, Cable Holde |
Dust reduction system - Playback / Editing | ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.0XE is available for download at Panasonic website using computer connected to the Internet. http://panasonic.jp/support/global/cs/soft/download/d_pfs99pe.html (For Windows) ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet. http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac) |
Dust reduction system - Recording | LUMIX Tether*6 ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac) |
Dust reduction system - Operating humidity | 10%RH to 80%RH |
Dust reduction system - Operating temperature*4 | -10℃ to 40℃ (14°F to 104°F) |
Dust reduction system - Weight | Approx. 725g / 1.60 lb (SD card, Battery, Body) Approx. 645g / 1.42 lb (Body only) Approx. 935g / 2.06 lb (SD card x 1, Battery, H-FS12060 lens included) Approx. 1030g / 2.27 lb (SD card x 1, Battery, H-HSA12035 lens included) Approx. 1045g / 2.30 lb (SD card x 1, Battery, H-ES12060 lens included) |
Dust reduction system - Battery grip | DMW-BGGH5 (sold separately) |
Dust reduction system - Dimensions (W x H x D) | 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions) |
Dust reduction system - Battery life (CIPA standard) | Approx. 410 images (rear monitor), 400 images (LVF), 1,000 images (Power Save LVF mode*) with H-FS12060 Approx. 410 images (rear monitor), 390 images (LVF), 1,000 images (Power Save LVF mode*) with H-HSA12035 Approx. 400 images (rear monitor), 380 images (LVF), 1,000 images (Power Save LVF mode*) with H-ES12060* Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 3 sec. |
Dust reduction system - Battery | Li-ion Battery Pack (7.2V, 1860mAh, 14Wh) (included) |
LANGUAGE | |
Dust reduction system - OSD language | Japanese, English, German, French, Italian, Spanish, Portuguese, Chinese (Traditional) |
Interface | |
Dust reduction system - SD card slot | Slot 1, Slot 2 |
Dust reduction system - Speaker | Monaural |
Dust reduction system - High-res audio recording | Yes with DMW-XLR1 (sold separately) |
Dust reduction system - Headphone output | φ3.5mm for headphone |
Dust reduction system - Microphone | Stereo, Wind Noise Canceller: OFF / Low / Standard / High / AUTO |
Dust reduction system - Audio video output | No |
Dust reduction system - Remote input | φ2.5mm for remote |
Dust reduction system - External microphone input | φ3.5mm for external microphone Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately). |
Dust reduction system - Playback | HDMI TypeA / VIERA Link, Audio: Stereo 59.94Hz: Auto / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p 50.00Hz: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p 24.00Hz: Auto / C4K / 4K/24p / 1080p |
Dust reduction system - USB | USB Type-C, Super Speed USB3.1 GEN1 |
Dust reduction system - Monitor-through | 4:2:2 10-bit (When [Rec Quality] is set to [4:2:2 10bit] or when [Rec Quality] is set to [4K/60p]/[4K/50p] and [4K/60p Bit Mode]/[4K/50p Bit Mode] is set to [4:2:2 10bit].When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the SD memory card in the camera unit.) 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit], except for [4K 60p]/[4K/50p]) 4:2:0 8bit (When [Rec Quality] is set to [4K/60p]/[4K/50p] and [4K/60p Bit Mode]/[4K/50p Bit Mode] is set to [4:2:0 8bit].) Auto / 4K/30p/25p / 1080p / 1080i / OFF Information display ON/OFF (selectable) Automatic down-conversion |
IMAGE PROTECTION / ERASE | |
Dust reduction system - Protection | Single / Multi or Cancel |
Dust reduction system - Erase | Single / Multi / All / Except Favorite |
Dust reduction system - Direct Print | PictBridge compatible |
MOTION PICTURE FUNCTION | |
Dust reduction system - Knee control | Yes (in Like709 mode) |
Dust reduction system - Photo style for motion picture | Cinelike D / Cinelike V / Like709*8 / Hybrid Log Gamma*/*6 / V-LogL***8* When Creative Video Mode is selected. ** Upgrade Software Key DMW-SFU1 (sold separately) is required. |
Dust reduction system - Colour bars / 1kHz test tone | Yes (SMPTE / EBU / ARIB) / Yes |
Dust reduction system - SS/Gain operation | Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB |
Dust reduction system - Synchro scan | Yes |
Dust reduction system - Time code | Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When system frequency [59.94Hz] is selected.) |
Dust reduction system - LUT display | LUT Monitor Display / LUT HDMI Display*Upgrade Software Key DMW-SFU1 (sold separately) is required. |
Dust reduction system - Wave form monitor / Vectorscope | Selectable |
Dust reduction system - Master pedestal level | 31 steps |
Dust reduction system - Luminance level | 8-bit: 0-255 / 16-235 / 16-255 10-bit: 0‒1023 / 64‒940 / 64‒1023 |
Playback | |
Dust reduction system - Playback mode | 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only, duration & effect is selectable), Playback Mode (Normal / Picture Only / Video Only), Protect, Rating, Title Edit, Face Recognition Edit, DPOF Print Set, RAW Processing, 6K/4K PHOTO Bulk Saving, 6K/4K PHOTO Noise Reduction, Light Composition, Clear Retouch, Text Stamp, Copy, Resize, Cropping, Rotate, Video Divide, Time Lapse Video, Stop Motion Video, Rotation Display, Anamorphic Desqueeze Display*6 / HLG View Assist*6 / LUT Monitor Display*7, LUT HDMI Display*7, Picture Sort, Delete Confirmation, Creating Still Pictures from a Motion Picture |
CREATIVE VIDEO MODE | |
Dust reduction system - Exposure mode | Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure |
CREATIVE CONTROL | |
Dust reduction system - Creative Control | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect** / Soft Focus* / Fantasy / Star Filter* / One Point Colour / Sunshine** For photos only. ** Not available in 4:2:2 10-bit video or 4K video recording. |
PHOTO STYLE | |
Dust reduction system - Photo Style | Standard / Vivid / Natural / Monochrome / L. Monochrome / L. Monochrome D*7 / Scenery / Portrait / Custom 1, 2, 3, 4 / Cinelike D / Cinelike V / Like709*8 / Hybrid Log Gamma*1/*6 / V-LogL*/*8** When Creative Video Mode is selected. ** Upgrade Software Key DMW-SFU1 (sold separately) is required. |
DIRECTION DETECTION FUNCTION | |
Dust reduction system - Direction Detection Function | Yes |
LIVE VIEW | |
Dust reduction system - Other functions | Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Center Marker, Highlight display (Still image / motion picture), Zebra pattern (Still image / motion picture) |
Dust reduction system - Extra Tele Conversion | Still image: Max. 2x 4K PHOTO: 1.6x (4:3), 1.5x (3:2), 1.4x (16:9, 1:1) Motion picture: 2.7x (FHD), 1.4x (4K) |
Dust reduction system - Digital zoom | 2x, 4x |
Rear monitor | |
Dust reduction system - Filed of view | Approx. 100% |
Dust reduction system - Monitor adjustment | Brightness, Contrast, Saturation, Red-Green, Blue-Yellow |
Dust reduction system - Pixels | Approx. 1,620K-dots |

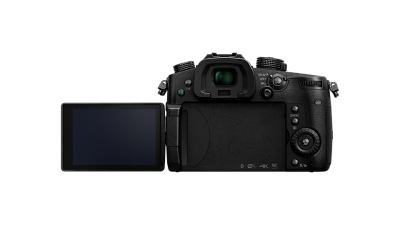

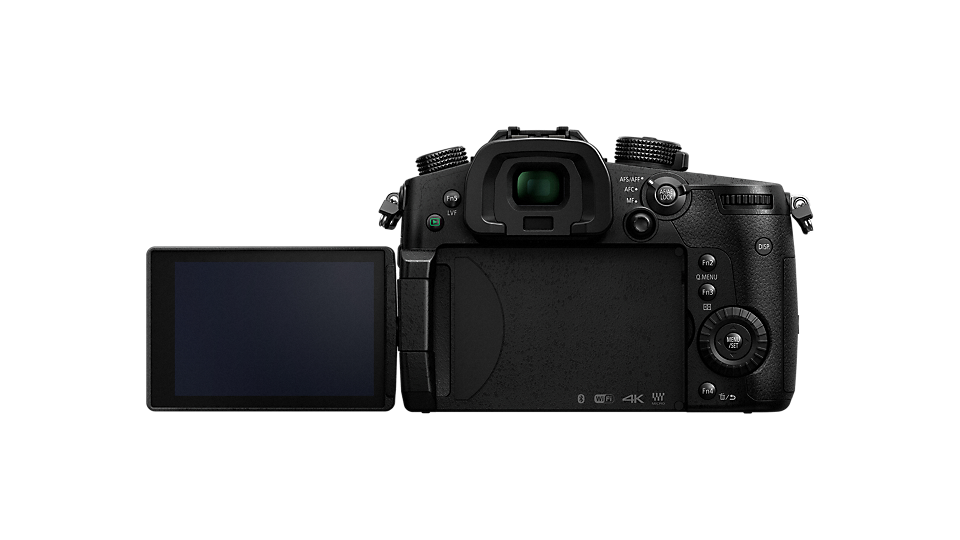

Dust reduction system - Monitor size | Free-angle 3.2-inch (8.0 cm) / 3:2 aspect / Wide viewing angle |
Dust reduction system - Type | TFT LCD monitor with static touch control |
Flash | |
Dust reduction system - Flash sync socket | Yes |
Dust reduction system - Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
Dust reduction system - Synchronization for flash dimming and exposure compensation | Yes |
Dust reduction system - Synchronization speed | Less than 1/250 second |
Dust reduction system - Flash output adjustment | 1/3EV step ±3EV |
Dust reduction system - Flash synchronization | 1st. Curtain Sync, 2nd Curtain Sync. |
Dust reduction system - Flash type | TTL External Flash (sold separately) |
Dust reduction system - Flash Mode | Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off* For iA, iA+ only. |
6K PHOTO*1 / 4K PHOTO | |
Dust reduction system - Loop rec function | Yes (in 6K*6/4K Burst (S/S) mode) |
Dust reduction system - Marking function | Yes (in 6K/4K Burst (S/S) mode) |
Dust reduction system - Exif information | Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.) |
Dust reduction system - Burst speed | [6K PHOTO] 30 frames/sec [4K PHOTO] 60 frames/sec, 30 frames/sec |
BURST SHOOTING | |
Dust reduction system - Number of recordable images | More than approx. 60 images (when there are RAW files with the particular speed) More than approx. 600 images (when there are no RAW files) (depending on memory card size, battery power, picture size, and compression) |
Dust reduction system - Burst speed | [Mechanical shutter] AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) [Mechanical shutter] AFF/AFC: H: 9 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) [Electronic shutter] AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) [Electronic shutter] AFF/AFC: H: 9 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
BRACKET | |
Dust reduction system - White balance bracket | 3 exposures in blue/amber axis or in magenta/green axis, colour temperature setting |
Dust reduction system - Focus Bracket | 1 to 999 images, focus steps can be set in 5 levels |
Dust reduction system - Aperture Bracket | 3, 5 or all positions in 1 EV step |
Dust reduction system - AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
Shutter | |
Dust reduction system - Remote control | Remote control with Bulb function by DMW-RSL1 (sold separately) |
Dust reduction system - Shutter life | Approx. 200,000 images |
Dust reduction system - Self timer | 10sec, 3 images / 2sec / 10sec |
Dust reduction system - Type | Focal-plane shutter |
Dust reduction system - Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic first curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: 1/16,000 - 1 Motion picture: 59.94Hz: 1/16,000 - 1/30, 50.00Hz: 1/16,000 - 1/25, 23.98Hz: 1/16,000 - 1/24 (When using Synchro Scan) |
White Balance | |
Dust reduction system - White balance | AWB / AWBc / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4 |
Dust reduction system - White balance adjustment | Blue/Amber bias, Magenta/Green bias |
Dust reduction system - Colour temperature setting | 2500-10000K in 100K |
Exposure Control | |
Dust reduction system - AE lock | Yes (AF/AE LOCK button) |
Dust reduction system - Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) |
Dust reduction system - ISO sensitivity (Standard Output Sensitivity) | Still image: Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step) Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step) |
Dust reduction system - Exposure mode | Program AE, Aperture Priority AE, Shutter Priority AE, Manual |
Dust reduction system - Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) |
Dust reduction system - Light metering mode | Multiple / Center Weighted / Spot |
Dust reduction system - Light metering system | 1,728-zone multi-pattern sensing system |
Focus | |
Dust reduction system - AF detective range | EV -4 - 18 (ISO100 equivalent) |
Dust reduction system - AF assist lamp | Yes |
Dust reduction system - AF lock | Yes (AF/AE LOCK button) |
Dust reduction system - AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction |
Dust reduction system - Others | One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter |
Dust reduction system - AF mode | Face/Eye Detection / Tracking / 225-Area / Custom Multi / 1-Area / Pinpoint (Full area touch is available) (Scalable AF frame size (by front/read dial) and flexible AF position (by joystick)) |
Dust reduction system - Focus mode | AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF |
Dust reduction system - Focus Stacking | Yes |
Dust reduction system - Post Focus | Yes |
Dust reduction system - Type | Contrast AF system |
Dust reduction system - DFD technology | Yes |
Viewfinder | |
Dust reduction system - Eye point | Approx. 21 mm from eyepiece lens |
Dust reduction system - Diopter adjustment | -4.0 - +3.0 (dpt) |
Dust reduction system - Eye sensor | Yes |
Dust reduction system - Eye sensor adjustment | High / Low |
Dust reduction system - Type | OLED Live View Finder (3,680k dots) |
Dust reduction system - Field of view | Approx. 100% |
Dust reduction system - Magnification | Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1 |
WIRELESS | |
Dust reduction system - Password-less connection | Yes (ON / OFF selectable) |
Dust reduction system - Bluetooth | Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) |
Dust reduction system - QR Code Connection | Yes |
Dust reduction system - Wi-Fi | IEEE 802.11a/b/g/n/ac * 5GHz Wi-Fi is not available in some countries. 1-11, 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165 ch |
RECORDING SYSTEM | |
Dust reduction system - Actual recordable time (Motion picture) | AVCHD [FHD/60p]: Approx. 75 min (rear monitor), 75 min (LVF) with H-ES12060, Approx. 80 min (rear monitor), 75 min (LVF) with H-HSA12035 / H-FS12060 AVCHD [FHD/60i]: Approx. 75 min (rear monitor), 75 min (LVF) with H-ES12060, Approx. 80 min (rear monitor), 80 min (LVF) with H-HSA12035 / H-FS12060 MP4 [4K/60p]: Approx. 50 min (rear monitor), 50 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060 MP4 [4K/30p]: Approx. 55 min (rear monitor), 55 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060 |
Dust reduction system - AVCHD Progressive*2/ AVCHD*2-50.00Hz | <[Full HD] 1920 x 1080> 50.00p, 28Mbps (LongGOP) (Dolby)<[Full HD] 1920 x 1080> 50.00i, 24Mbps (LongGOP) (Dolby) (Sensor output is 25.00fps)<[Full HD] 1920 x 1080> 50.00i, 17Mbps (LongGOP) (Dolby) (Sensor output is 50.00fps) |
Dust reduction system - Continuous recordable time (Motion picture) | AVCHD [FHD/60p]: Approx. 150 min (rear monitor), 150 min (LVF) with H-ES12060, Approx. 160 min (rear monitor), 150 min (LVF) with H-HSA12035 / H-FS12060 AVCHD [FHD/60i]: Approx. 150 min (rear monitor), 150 min (LVF) with H-ES12060, Approx. 160 min (rear monitor), 160 min (LVF) with H-HSA12035 / H-FS12060 MP4 [4K/60p]: Approx. 100 min (rear monitor), 100 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060 MP4 [4K/30p]: Approx. 110 min (rear monitor), 110 min (LVF) with H-ES12060 / H-HSA12035 / H-FS12060 |
Dust reduction system - 1:1 | 3888 x 3888 (L) / 2784 x 2784 (M) / 1968 x 1968 (S) / 2880 x 2880 (4K PHOTO) |
Dust reduction system - AVCHD Progressive*2/ AVCHD*2-59.94Hz | <[Full HD] 1920 x 1080> 59.94p, 28Mbps (LongGOP) (Dolby)<[Full HD] 1920 x 1080> 59.94i, 24Mbps (LongGOP) (Dolby) (Sensor output is 29.97fps)<[Full HD] 1920 x 1080> 59.94i, 17Mbps (LongGOP) (Dolby) (Sensor output is 59.94fps)<[Full HD] 1920 x 1080> 23.98p, 24Mbps (LongGOP) (Dolby) |
Dust reduction system - Image quality | RAW, RAW+Fine, RAW+Standard, Fine, Standard |
Dust reduction system - Colour Space | sRGB, AdobeRGB |
Dust reduction system - 4:3 | 5184 x 3888 (L) / 3712 x 2784 (M) / 2624 x 1968 (S) / 4992 x 3744 (6K PHOTO) / 3328 x 2496 (4K PHOTO) |
Dust reduction system - 3:2 | 5184 x 3456 (L) / 3712 x 2480 (M) / 2624 x 1752 (S) / 5184 x 3456 (6K PHOTO) / 3504 x 2336 (4K PHOTO) |
Dust reduction system - 16:9 | 5184 x 2920 (L) / 3840 x 2160 (M) / 1920 x 1080 (S) / 3840 x 2160 (4K PHOTO) |
Dust reduction system - System frequency | 59.94Hz, 50.00Hz, 24.00Hz |
Dust reduction system - Aspect ratio | 4:3, 3:2, 16:9, 1:1 |
Dust reduction system - Motion picture | MOV: H.264/MPEG-4 AVC (Audio format: LPCM [2 ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)] * When attaching DMW-XLR1 (sold separately). MP4: H.264/MPEG-4 AVC / HEVC*6 (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch)) AVCHD Progressive, AVCHD (Audio format: Dolby Audio 2 ch) |
Dust reduction system - 6K PHOTO*1 / 4K PHOTO | 6K PHOTO: MP4 [H.265/HEVC, Audio format: AAC (2 ch)] 4K PHOTO: MP4 [H.264/MPEG-4 AVC, Audio format: AAC (2 ch)] |
Dust reduction system - Still image | JPEG (DCF, Exif 2.31), RAW |
Image Stabilization System | |
Dust reduction system - Image stabilization system | Image sensor shift type (5-axis / 5-stop*), Dual I.S. (Dual I.S. 2 compatible)* Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60 mm (35 mm camera equivalent: f=120 mm), when H-FS12060 is used. |
Image Sensor | |
Colour filter | Primary colour filter |
Dust reduction system | Supersonic wave filter |
Camera effective pixels | 20.33 Megapixels |
Total pixels | 21.77 Megapixels |
Type | Live MOS Sensor |
Type | |
Lens mount | Micro Four Thirds mount |
Image sensor size | 17.3 x 13.0 mm (in 4:3 aspect ratio) |
Type | Digital Single Lens Mirrorless camera |
Recording media | SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I / UHS-II UHS Speed Class 3 standard SDHC / SDXC Memory Cards) |
